In aerospace processing, materials such as titanium alloys are common, and milling cutters play a crucial role in the forming and precision machining of parts. The machining parameters should be carefully selected based on the material being cut. Robust tool settings and stable machining conditions are crucial. Implementing a tool monitoring system can help detect tool wear or breakage early, thereby reducing the risk of defects in aerospace components.

Due to its low specific gravity, high strength and thermal strength, good thermal stability and corrosion resistance, titanium alloy can significantly reduce product weight, improve thrust to weight ratio, and enhance the heat resistance and reliability of structures. Therefore, it is widely used in aviation, aerospace, petroleum, chemical, shipbuilding and other sectors. When processing titanium alloys known for their high strength, low thermal conductivity, and good abrasion resistance, specialized milling cutters are often used to optimize performance and extend tool life. The following are some characteristics and precautions of specialized milling cutters designed specifically for titanium alloy processing:

Milling cutters should be made of high-quality materials, such as hard alloy. Hard alloys are favored due to their excellent hardness and wear resistance. Titanium nitride (TiN), titanium carbon nitride (TiCN), or other coatings can enhance the wear resistance of cutting tools and reduce friction. These coatings are crucial for extending the tool life during the processing of titanium alloys. The geometric shape of the cutting tool has been optimized for titanium alloy machining. This may include high helix angles, positive rake angles, and special edge treatments to reduce cutting forces and improve chip removal. Carefully select the groove configuration, and in some cases, it may be preferable to reduce the number of chip holding grooves (such as 4 or 5) to achieve larger chip space and better chip removal effect. Chip breaking grooves or special chip holding groove designs can be used to solve the challenge of chip removal, which is crucial in titanium processing to prevent chip re cutting and heat accumulation.

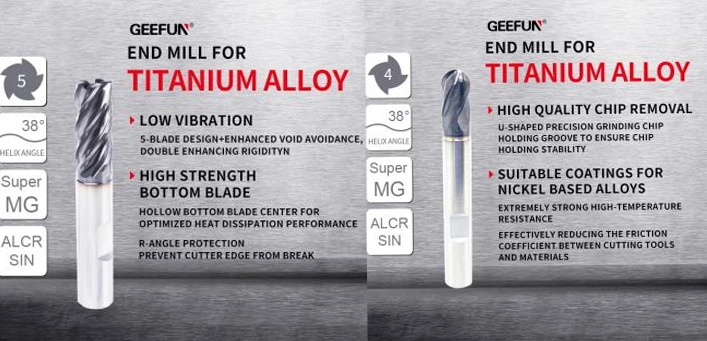

Compared with milling cutters with fewer grooves, 5-axis titanium alloy milling cutters may have potential advantages in machining, such as improving surface smoothness, enhancing stability, and potentially higher metal removal rates. The additional chip removal groove helps to better remove chips and reduce cutting forces. Processing of difficult to cut materials: can be used for deep groove processing of stainless steel and titanium alloys. Multi blade specification, special R-shaped corrugated cutting edge, stress concentration, suppression of chipping, high hardness coating for long life, stable processing, suitable for rough to semi precision machining.

A 4-edge ball titanium alloy milling cutter designed specifically for milling titanium alloys, combining the advantages of a 4-edge design and a spherical cutting end. The following are some key characteristics and precautions of a 4-edge ball titanium alloy milling cutter: Blade configuration: The 4-edge design achieves a balance between efficient chip removal and stability during the milling process. It helps to achieve good surface smoothness and maintain tool rigidity. Ball head: Spherical cutting heads (also known as ball heads) are particularly suitable for contour machining and 3D machining. It can achieve smoother cutting paths, especially in complex geometric shapes, and is suitable for precision machining operations. According to the specific design, the 4-edge ball end mill may have a smaller fillet radius at the intersection of the groove and the ball end.

This radius helps to improve tool life and reduce stress concentration. Used in the aerospace industry for processing components with complex geometric shapes, such as wing shapes and engine components. When using a 4-edge ball end mill, the following factors should be considered: cutting speed, feed rate, and the specific material being machined, in order to optimize tool performance and achieve the expected results. The versatility of this type of milling cutter makes it a valuable tool in various machining applications.

The titanium alloy milling cutters produced by Xutejifeng Company are very suitable for processing titanium and nickel based alloy aerospace parts. Chip removal and heat generation are major issues when processing titanium alloys, and our titanium alloy special milling cutter perfectly solves these problems.
