HRC60-4 blade flat milling cutter (GEN)

Advantages and characteristics

Low Vibration

● Unequal tooth division and tooth pitch can reduce vibration

● Thick core, strong rigidity, and blade vibration free

Reverse blade

● Sharp corner protection treatment to avoid blade breakage

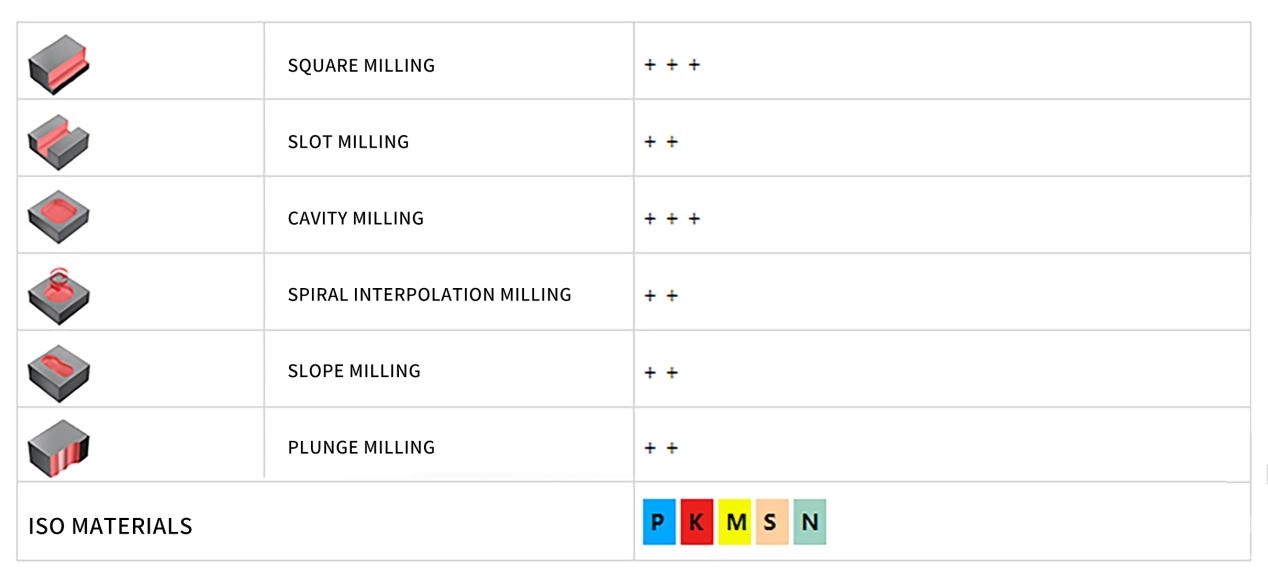

Strong universal performance

● The integration of rough, fine, and semi fine processing has shown good performance in different processes.

● Suitable for quenched steel with hardness of 32 ≤ HRC ≤ 60

● Suitable for stainless steel with HRC ≤ 48

● Suitable for processing purple copper

● General processing requirements applicable to titanium alloys

Nano coating

● Heat resistance, oxidation resistance, and wear resistance

● Reduce friction coefficient, minimize cutting heat, and avoid chip lumps


Parameter

NO.	d-R	L1	DH6	L
GEN-4R053350	Φ3 R0.5	8	Φ3	50
GEN-4R103350	Φ3 R1	8	Φ3	50
GEN-4R053450	Φ3 R0.5	8	Φ4	50
GEN-4R103450	Φ3 R1	8	Φ4	50
GEN-4R054450	Φ4 R0.5	10	Φ4	50
GEN-4R104450	Φ4 R1	10	Φ4	50
GEN-4R055550	Φ5 R0.5	13	Φ5	50
GEN-4R105550	Φ5 R1	13	Φ5	50
GEN-4R055650	Φ5 R0.5	13	Φ6	50
GEN-4R105650	Φ5 R1	13	Φ6	50
GEN-4R056650	Φ6 R0.5	15	Φ6	50
GEN-4R106650	Φ6 R1	15	Φ6	50
GEN-4R058860	Φ8 R0.5	20	Φ8	60
GEN-4R108860	Φ8 R1	20	Φ8	60
GEN-4R053375	Φ3 R0.5	12	Φ3	75
GEN-4R103375	Φ3 R1	12	Φ3	75
GEN-4R054475	Φ4 R0.5	15	Φ4	75
GEN-4R104475	Φ4 R1	15	Φ4	75
GEN-4R055575	Φ5 R0.5	20	Φ5	75
GEN-4R105575	Φ5 R1	20	Φ5	75
GEN-4R056675	Φ6 R0.5	20	Φ6	75
GEN-4R106675	Φ6 R1	20	Φ6	75
GEN-4R058875	Φ8 R0.5	25	Φ8	75
GEN-4R108875	Φ8 R1	25	Φ8	75
GEN-4R051075	Φ10 R0.5	25	Φ10	75
GEN-4R101075	Φ10 R1	25	Φ10	75
GEN-4R051275	Φ12 R0.5	30	Φ12	75
GEN-4R101275	Φ12 R1	30	Φ12	75
GEN-4R051480	Φ14 R0.5	32	Φ14	80
GEN-4R101480	Φ14 R1	32	Φ14	80
GEN-4R053100	Φ3 R0.5	12	Φ3	100
GEN-4R103100	Φ3 R1	12	Φ3	100
GEN-4R054100	Φ4 R0.5	16	Φ4	100
GEN-4R104100	Φ4 R1	16	Φ4	100
GEN-4R055100	Φ5 R0.5	20	Φ5	100
GEN-4R105100	Φ5 R1	20	Φ5	100
GEN-4R056100	Φ6 R0.5	25	Φ6	100
GEN-4R106100	Φ6 R1	25	Φ6	100
GEN-4R058100	Φ8 R0.5	35	Φ8	100
GEN-4R108100	Φ8 R1	35	Φ8	100
GEN-4R0510100	Φ10 R0.5	40	Φ10	100
GEN-4R1010100	Φ10 R1	40	Φ10	100
GEN-4R0512100	Φ12 R0.5	45	Φ12	100
GEN-4R1012100	Φ12 R1	45	Φ12	100
GEN-4R0514100	Φ14 R0.5	45	Φ14	100
GEN-4R1014100	Φ14 R1	45	Φ14	100
GEN-4R0516100	Φ16 R0.5	45	Φ16	100
GEN-4R1016100	Φ16 R1	45	Φ16	100
GEN-4R0518100	Φ18 R0.5	45	Φ18	100
GEN-4R1018100	Φ18 R1	45	Φ18	100
GEN-4R0520100	Φ20 R0.5	45	Φ20	100
GEN-4R1020100	Φ20 R1	45	Φ20	100
GEN-4R0525100	Φ25 R0.5	45	Φ25	100
GEN-4R1025100	Φ25 R1	45	Φ25	100
GEN-4R056150	Φ6 R0.5	25	Φ6	150
GEN-4R106150	Φ6 R1	25	Φ6	150
GEN-4R058150	Φ8 R0.5	35	Φ8	150
GEN-4R108150	Φ8 R1	35	Φ8	150
GEN-4R0510150	Φ10 R0.5	45	Φ10	150
GEN-4R1010150	Φ10 R1	45	Φ10	150
GEN-4R0512150	Φ12 R0.5	45	Φ12	150
GEN-4R1012150	Φ12 R1	45	Φ12	150
GEN-4R0514150	Φ14 R0.5	45	Φ14	150
GEN-4R1014150	Φ14 R1	45	Φ14	150
GEN-4R0516150	Φ16 R0.5	50	Φ16	150
GEN-4R1016150	Φ16 R1	50	Φ16	150
GEN-4R0518150	Φ18 R0.5	50	Φ18	150
GEN-4R1018150	Φ18 R1	50	Φ18	150
GEN-4R0520150	Φ20 R0.5	55	Φ20	150
GEN-4R1020150	Φ20 R1	55	Φ20	150
GEN-4R0525150	Φ25 R0.5	60	Φ25	150
GEN-4R1025150	Φ25 R1	60	Φ25	150
