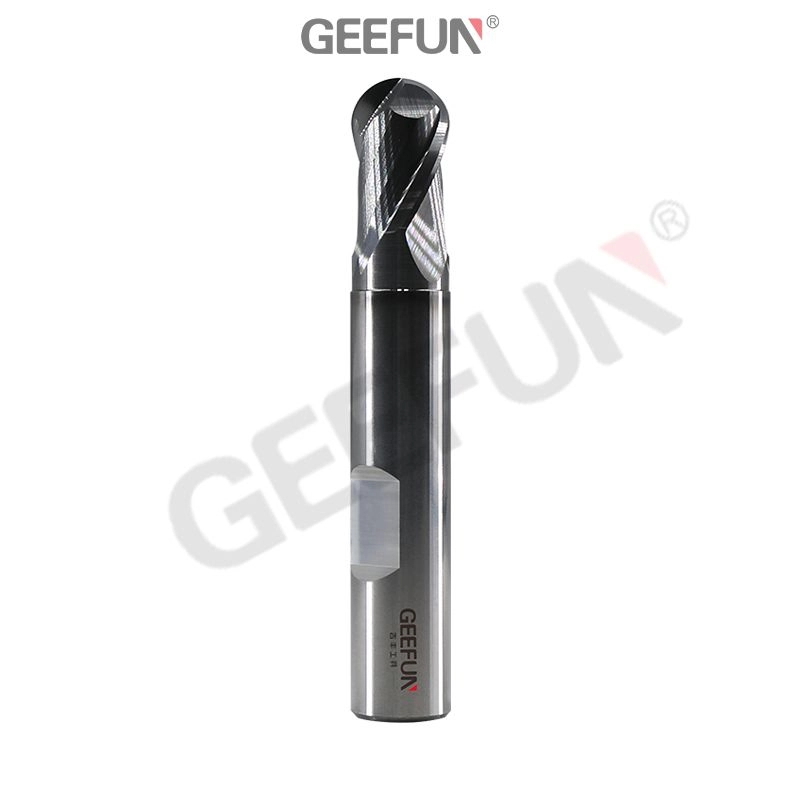

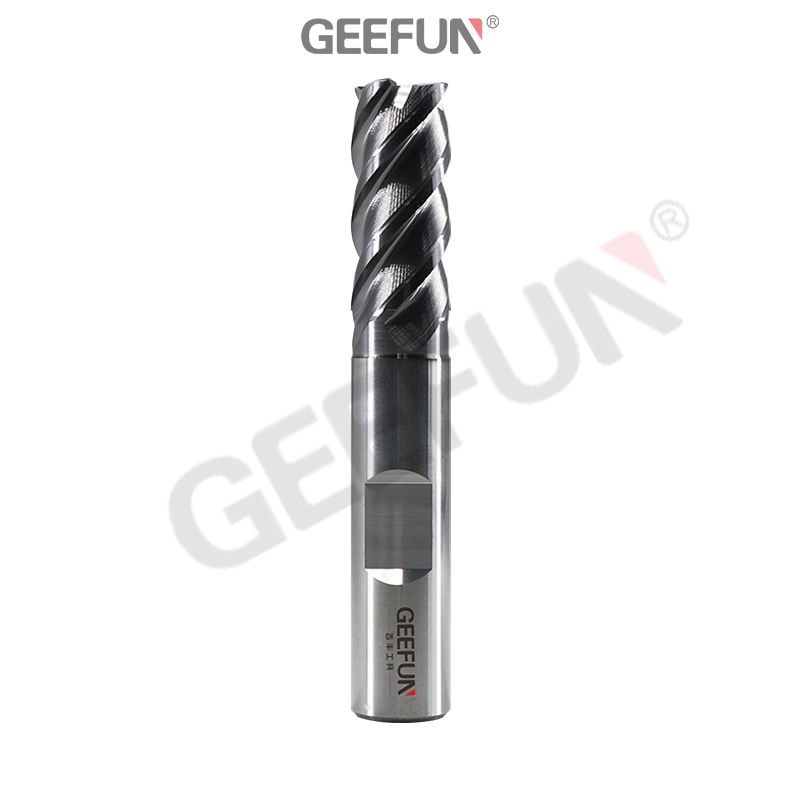

High hardness material processing (GES)

High-hardness milling cutter with a highly wear-resistant coating; suitable for machining composite materials and difficult-to-cut materials.

Advantages and Features

Suitable for hardened steel (45 ≤ HRC ≤ 70)

Low Vibration

● Unequal flute spacing and variable helix angles reduce vibration.

● Large core diameter ensures high rigidity and chatter-free operation.

Precision Machining Choice

● High helix angle and cutting edge geometry deliver superior surface finish.

Edge Reinforcement

● Corner protection treatment prevents chipping.

Special Ultra-Hard Coating

● Optimized for machining hard materials.

● Heat-resistant, oxidation-resistant, and highly wear-resistant.

● Effectively reduces the coefficient of friction between the tool and the workpiece.

Parameter:

NO.	d1	d2	L1	L2	DH6	L
GES-4R053350	Φ3 R0.5	/	8	/	Φ3	50
GES-4R103350	Φ3 R1	/	8	/	Φ3	50
GES-4R053450	Φ3 R0.5	/	8	/	Φ4	50
GES-4R103450	Φ3 R1	/	8	/	Φ4	50
GES-4R054450	Φ4 R0.5	3.7	8	3	Φ4	50
GES-4R104450	Φ4 R1	3.7	8	3	Φ4	50
GES-4R055550	Φ5 R0.5	4.7	10	5	Φ5	50
GES-4R105550	Φ5 R1	4.7	10	5	Φ5	50
GES-4R055650	Φ5 R0.5	4.7	10	5	Φ6	50
GES-4R105650	Φ5 R1	4.7	10	5	Φ6	50
GES-4R056650	Φ6 R0.5	5.7	12	5	Φ6	50
GES-4R106650	Φ6 R1	5.7	12	5	Φ6	50
GES-4R058860	Φ8 R0.5	7.7	17	5	Φ8	60
GES-4R108860	Φ8 R1	7.7	17	5	Φ8	60
GES-4R053375	Φ3 R0.5	2.7	10	5	Φ3	75
GES-4R103375	Φ3 R1	2.7	10	5	Φ3	75
GES-4R054475	Φ4 R0.5	3.7	12	5	Φ4	75
GES-4R104475	Φ4 R1	3.7	12	5	Φ4	75
GES-4R055575	Φ5 R0.5	4.7	17	5	Φ5	75
GES-4R105575	Φ5 R1	4.7	17	5	Φ5	75
GES-4R056675	Φ6 R0.5	5.7	17	5	Φ6	75
GES-4R106675	Φ6 R1	5.7	17	5	Φ6	75
GES-4R058875	Φ8 R0.5	7.7	22	5	Φ8	75
GES-4R108875	Φ8 R1	7.7	22	5	Φ8	75
GES-4R051075	Φ10 R0.5	9.7	22	5	Φ10	75
GES-4R101075	Φ10 R1	9.7	22	5	Φ10	75
GES-4R051275	Φ12 R0.5	11.7	27	5	Φ12	75
GES-4R101275	Φ12 R1	11.7	27	5	Φ12	75
GES-4R051480	Φ14 R0.5	13.7	28	10	Φ14	80
GES-4R101480	Φ14 R1	13.7	28	10	Φ14	80
GES-4R053100	Φ3 R0.5	2.7	10	5	Φ3	100
GES-4R103100	Φ3 R1	2.7	10	5	Φ3	100
GES-4R054100	Φ4 R0.5	3.7	13	5	Φ4	100
GES-4R104100	Φ4 R1	3.7	13	5	Φ4	100
GES-4R055100	Φ5 R0.5	4.7	17	5	Φ5	100
GES-4R105100	Φ5 R1	4.7	17	5	Φ5	100
GES-4R056100	Φ6 R0.5	5.7	22	5	Φ6	100
GES-4R106100	Φ6 R1	5.7	22	5	Φ6	100
GES-4R058100	Φ8 R0.5	7.7	30	5	Φ8	100
GES-4R108100	Φ8 R1	7.7	30	5	Φ8	100
GES-4R0510100	Φ10 R0.5	9.7	35	5	Φ10	100
GES-4R1010100	Φ10 R1	9.7	35	5	Φ10	100
GES-4R0512100	Φ12 R0.5	11.7	40	5	Φ12	100
GES-4R1012100	Φ12 R1	11.7	40	5	Φ12	100
GES-4R0514100	Φ14 R0.5	13.7	40	10	Φ14	100
GES-4R1014100	Φ14 R1	13.7	40	10	Φ14	100
GES-4R0516100	Φ16 R0.5	15.7	40	10	Φ16	100
GES-4R1016100	Φ16 R1	15.7	40	10	Φ16	100
GES-4R0518100	Φ18 R0.5	17.7	40	10	Φ18	100
GES-4R1018100	Φ18 R1	17.7	40	10	Φ18	100
GES-4R0520100	Φ20 R0.5	19.7	40	10	Φ20	100
GES-4R1020100	Φ20 R1	19.7	40	10	Φ20	100
GES-4R0525100	Φ25 R0.5	24.7	40	10	Φ25	100
GES-4R1025100	Φ25 R1	24.7	40	10	Φ25	100
GES-4R0566150	Φ6 R0.5	5.7	22	5	Φ6	150
GES-4R1066150	Φ6 R1	5.7	22	5	Φ6	150
GES-4R0588150	Φ8 R0.5	7.7	30	5	Φ8	150
GES-4R1088150	Φ8 R1	7.7	30	5	Φ8	150
GES-4R0510150	Φ10 R0.5	9.7	40	5	Φ10	150
GES-4R1010150	Φ10 R1	9.7	40	5	Φ10	150
GES-4R0512150	Φ12 R0.5	11.7	40	5	Φ12	150
GES-4R1012150	Φ12 R1	11.7	40	5	Φ12	150
GES-4R0514150	Φ14 R0.5	13.7	40	10	Φ14	150
GES-4R1014150	Φ14 R1	13.7	40	10	Φ14	150
GES-4R0516150	Φ16 R0.5	15.7	45	10	Φ16	150
GES-4R1016150	Φ16 R1	15.7	45	10	Φ16	150
GES-4R0518150	Φ18 R0.5	17.7	45	10	Φ18	150
GES-4R1018150	Φ18 R1	17.7	45	10	Φ18	150
GES-4R0520150	Φ20 R0.5	19.7	50	10	Φ20	150
GES-4R1020150	Φ20 R1	19.7	50	10	Φ20	150
GES-4R0525150	Φ25 R0.5	24.7	55	10	Φ25	150
GES-4R1025150	Φ25 R1	24.7	55	10	Φ25	150
