A thread milling cutter is a tool that cuts threads through milling. In the past, traditional thread machining methods usually relied on taps and other tools. With the continuous development and advancement of CNC technology, more advanced thread milling methods have emerged. It has excellent advantages in precision and machining efficiency, and thread milling cutters are also more economical in machining costs. Nowadays, thread milling cutters have been widely used in CNC machining.

1. Design:

The thread milling cutter is designed with multiple cutting edges, allowing it to cut the thread profile in one pass.

2. Type:

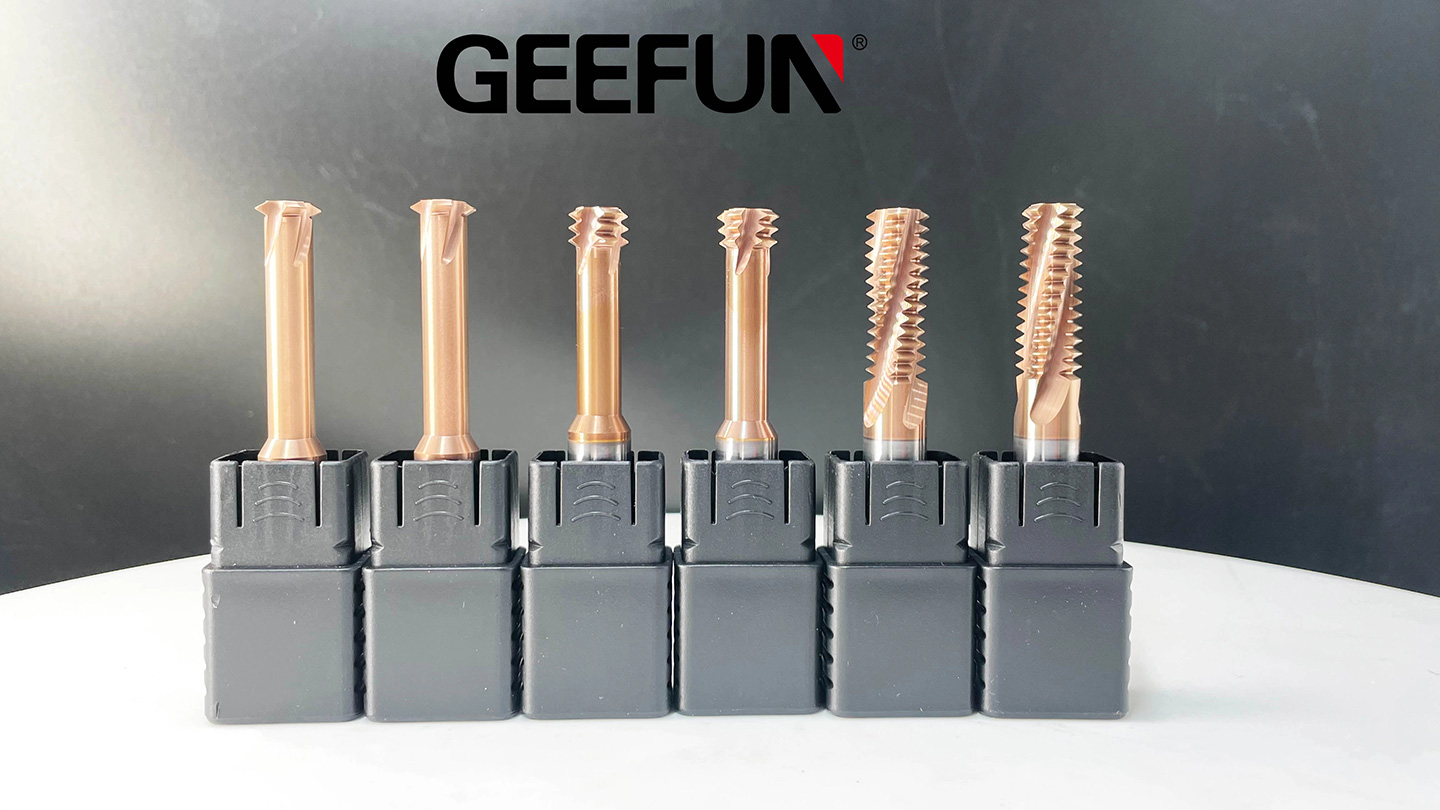

There are different types of thread milling cutters, including single shape milling cutters and multi shape milling cutters. Single shaped milling cutters create one thread pitch at a time, while multi shaped milling cutters can generate multiple thread pitches simultaneously. The choice between single thread and multi thread milling cutters depends on factors such as production volume, required thread speed, and the complexity of thread processing. Single thread milling cutters are widely used and simple, suitable for various applications. On the other hand, multi thread milling cutters perform well in situations where efficiency and speed are crucial, especially in mass production environments.

3. Materials:

The commonly used thread milling cutters in the market are usually made of high-speed steel or hard alloy materials, which can process steel parts, cast iron, and non-ferrous metals. Processing materials of different hardness requires the use of thread milling cutters with different raw materials. The processing hardness of hard alloy is much higher than that of high-speed steel.

4. Application:

Hard alloy thread milling cutters can achieve precise hole center distance and perfect threads in the mold machinery industry, ensuring the quality of workpieces through the use of thread milling cutters. For non-standard types of workpieces, thread milling cutters can be used to achieve precise machining accuracy.

5. Advantages:

Thread milling has multiple advantages, such as the ability to machine threads on blind holes, deep holes, and irregular surfaces. It is a universal method that can be used for various thread profiles and sizes.

6. Numerical Control Machining:

Thread milling is typically performed using computer numerical control (CNC) machine tools. CNC programming can precisely control cutting parameters, resulting in accurate and consistent threads.

7. Programming:

Thread milling CNC programming involves specifying thread type, pitch, depth, and other parameters to obtain the desired thread profile.

8. Spiral interpolation:

Thread milling cutters typically use spiral interpolation, where the tool moves in a spiral motion along the axis of the workpiece to create threads.

9. Coolant and lubrication:

Adequate coolant and lubrication are crucial for heat dissipation and extending tool life during thread milling.

The workpiece is firmly installed on the milling machine or CNC machining center. It must be aligned correctly to ensure precise thread geometry. Numerical control machine tools use specific parameters of threads for programming, including pitch, depth, and diameter. The tool path is usually programmed to move in a spiral motion along the axis of the workpiece.

The milling cutter moves along a spiral path to generate threads. This spiral interpolation allows the tool to machine the entire thread profile in one pass. Depending on the thread depth and the material being processed, this process may require multiple cuts to achieve the desired thread depth. Extended tool life: Compared to taps, thread milling cutters have longer tool life with multiple cutting edges. Cost effectiveness: In some cases, thread milling is more cost-effective than other thread machining methods, especially for large or complex threads.

When the advantages of this method (such as extended tool life, flexibility in thread size and type, and the ability to handle challenging geometries) outweigh the advantages of traditional tapping methods, choose a thread milling cutter. The thread milling method of milling cutters is increasingly recognized and used by more and more users in the mechanical manufacturing industry, which has promoted the development and progress of the industry. Suitable thread solutions should be combined with high-quality thread milling cutters to fully leverage the advantages of thread milling cutters.
