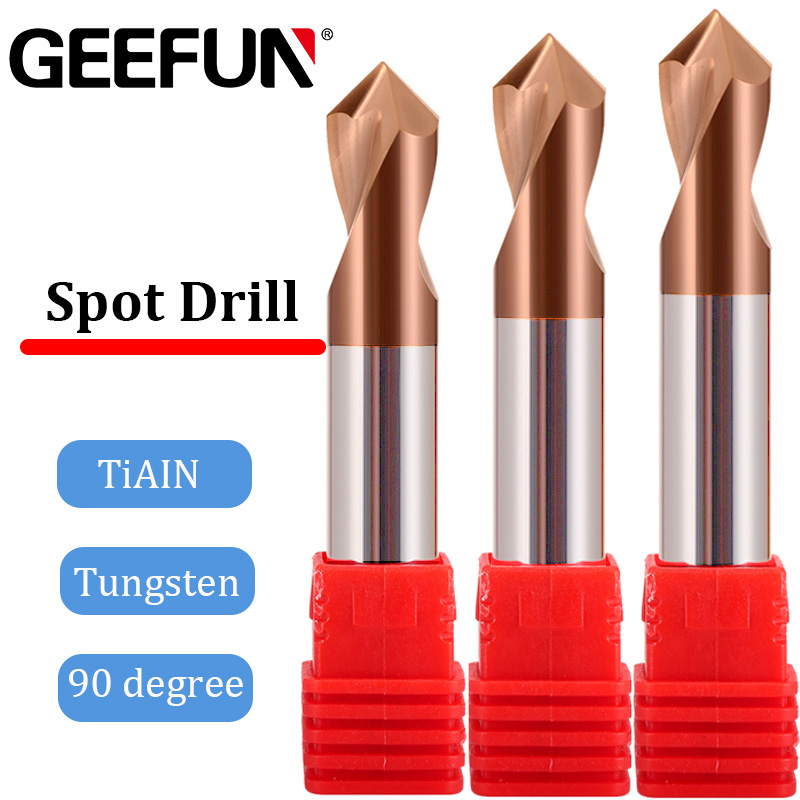

The spotting drill, as the name suggests, is a short-cutting-edge drill bit specifically designed for machining precise pilot holes and center holes on workpieces. It is an indispensable preparatory tool in machining, particularly in CNC machining centers and turn-mill centers.
Its primary purpose is not to drill deep holes, but to pre-drill a shallow, conical hole with precise location and excellent guiding properties on the workpiece surface. This shallow hole provides a perfect starting point and guide for subsequent tools like twist drills, reamers, or taps, ensuring they do not "walk" or deviate at the beginning of the cutting operation.
Core Advantages of the Spotting Drill
The benefits of using a spotting drill are comprehensive, enhancing both machining quality and efficiency. Its core advantages include:
1. Extremely High Hole Location Accuracy: This is the fundamental value of the spotting drill. The chisel edge of a twist drill is highly prone to skidding upon initial contact with the workpiece due to uneven forces, leading to deviations in hole position. The spotting drill lacks a chisel edge; its point can quickly and accurately locate, fundamentally eliminating positioning error at the initial stage and guaranteeing hole position tolerance.
2. Superior Hole Entrance Quality: The conical hole entrance machined by the spotting drill perfectly guides the subsequent drill bit for smooth entry. This effectively avoids vibration, "grabbing," or chattering that can occur when a twist drill plunges directly, resulting in a smoother, more regular hole entrance with reduced burring.
3. Extended Drill Bit Life:The cutting speed at the chisel edge of a twist drill is nearly zero; it primarily cuts through extrusion, subjecting it to immense force and rapid wear during the initial stage. The spotting drill preemptively removes this "hard nut" for the twist drill, allowing it to start cutting effectively with its full cutting edges from the beginning. This ensures even force distribution, significantly reduces drill bit wear, and extends tool life.
4. Improved Machining Efficiency and Stability: In CNC machining, especially when processing high-value components or difficult-to-machine materials (like stainless steel, titanium alloys), the cost of scrap due to hole location errors is very high. Although using a spotting drill adds an extra step, it drastically increases the success rate and consistency of subsequent drilling operations, reduces rework and scrap, and overall enhances production efficiency and process stability.
5. Optimized for CNC Machine Tools: Spotting drills typically feature a more rigid short-edge design with shorter flutes. This provides excellent rigidity at high rotational speeds, minimizing deflection, making them ideally suited for the high-speed, high-feed machining modes of modern CNC machines.
Though small, the spotting drill plays a pivotal, "small but mighty" role in the field of precision machining. Through a simple, quick preparatory step, it lays a foundation of precision, stability, and efficiency for the entire drilling process. Investing in and properly utilizing spotting drills is an effective strategy for avoiding machining errors, improving hole-making quality, and reducing overall production costs. It is an essential tool that every machinist and programmer striving for excellence should master.
