As common tools in reaming operations, spiral reamers and straight-flute reamers exhibit core differences in structural design, machining performance, application scenarios, and other aspects. The specific distinctions can be analyzed from the following perspectives:
Straight-flute reamers feature straight-line flutes that run parallel to the tool axis, with cutting teeth evenly distributed along the axial direction. Their chip evacuation follows an "axial pattern," where chips are discharged directly toward either the front or rear end of the tool along the straight flutes. The chip evacuation direction is fixed, aligning either with or against the machining feed direction.

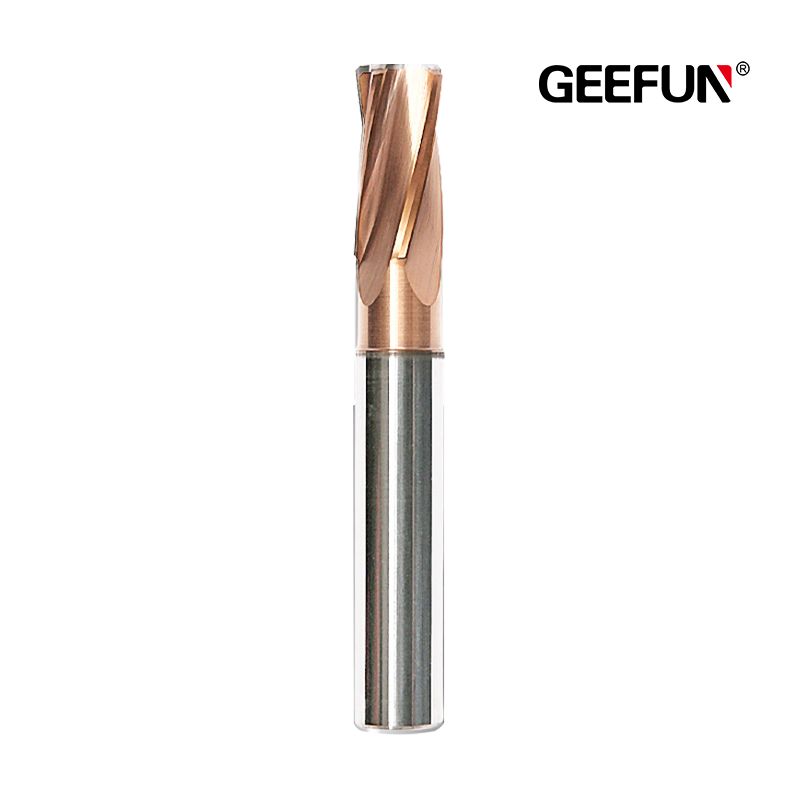

In contrast, spiral reamers have helical flutes, with cutting teeth spirally distributed around the tool axis and a distinct helix angle (typically ranging from 5° to 45°). Their chip evacuation adopts a "helical-direction pattern," where chips are discharged along the inclined direction of the helical flutes. By adjusting the helix direction (left-hand or right-hand), chips can be controlled to discharge either to the outside of the workpiece or toward the rear end of the tool, preventing chip accumulation inside the machined hole.When the teeth of a straight-flute reamer engage in cutting simultaneously, the cutting force concentrates in the direction parallel to the axis. Moreover, the contact between the cutting edges and the workpiece is an "instantaneous synchronous contact," which easily leads to vibration due to fluctuations in cutting force. This vibration becomes more pronounced when machining deep holes or workpieces with low rigidity, potentially causing defects such as waviness or chatter marks on the machined surface and impairing surface roughness.
For spiral reamers, due to the spiral distribution of their teeth, cutting occurs through "progressive contact"—each tooth does not fully engage with the workpiece at the same time but participates in cutting sequentially and gradually. This disperses the cutting force across different moments and directions, significantly reducing the peak value of instantaneous cutting force. This progressive cutting method effectively suppresses vibration; even when machining deep holes or thin-walled parts, it can maintain good cutting stability, resulting in a flatter and smoother machined surface.
Straight-flute reamers excel in "dimensional accuracy control." Owing to their symmetrical flute structure and simplicity, it is easier to ensure dimensional consistency during tool manufacturing. They are suitable for scenarios where high dimensional accuracy of the hole is required (e.g., IT7-IT8 grades), but relatively less strict surface roughness (e.g., Ra1.6-Ra3.2μm) is acceptable. However, affected by vibration, the cylindricity of the holes machined by straight-flute reamers may be slightly inferior to that of spiral reamers. Additionally, poor chip evacuation can cause chips to scratch the hole wall, compromising surface quality.
Spiral reamers, benefiting from minimal vibration and smooth chip evacuation, can better ensure the "form accuracy" (e.g., cylindricity, roundness) and "surface roughness" (achievable up to Ra0.4-Ra1.6μm) of the hole. They are particularly advantageous when machining precision holes or holes requiring low roughness. Nevertheless, the manufacturing process of spiral reamers is relatively complex, leading to a slightly higher cost compared to straight-flute reamers.
Straight-flute reamers are more suitable for "general-precision machining" and "simple working conditions." For example: machining brittle or low-plastic materials such as cast iron and cast steel (the chips of these materials are relatively fragmented, and straight-flute chip evacuation can meet requirements); machining shallow holes (with a depth-to-diameter ratio ≤ 3), where there is no need to worry about chip accumulation; or mass-producing general-purpose parts (such as ordinary bolt holes and positioning holes) with low surface quality requirements. Their simple structure and low cost help reduce machining costs.
Spiral reamers, on the other hand, are more suitable for "precision machining" and "complex working conditions." For instance: machining plastic materials like aluminum alloys, copper alloys, and stainless steel (the chips of these materials are ribbon-shaped, and helical flutes can prevent chips from 缠绕 the tool or scratching the hole wall); machining deep holes (with a depth-to-diameter ratio ＞ 3), where helical chip evacuation can avoid chip clogging in the hole; or machining precision parts (such as bearing holes and hydraulic valve holes) that require guaranteed form accuracy and low roughness of the hole. Their stable cutting performance can meet high-precision requirements.
Due to concentrated cutting force and relatively obvious vibration, the teeth of straight-flute reamers wear relatively quickly. This is especially true when machining hard materials, resulting in a shorter tool life. However, due to their simple structure, worn straight-flute reamers can be repaired through simple regrinding (only the straight cutting edges need to be ground), leading to low maintenance costs.
For spiral reamers, the cutting force is dispersed and vibration is minimal, so the teeth bear force more evenly, resulting in slower wear. Their tool life is usually 10%-30% longer than that of straight-flute reamers (especially when machining plastic materials). Nevertheless, regrinding the helical cutting edges of spiral reamers requires specialized equipment (such as a helical grinding machine), and the regrinding process is complex, leading to relatively high maintenance costs. Additionally, it is difficult to ensure the consistency of dimensional accuracy and helix angle after regrinding, and in some cases, the tool may need to be replaced directly.
