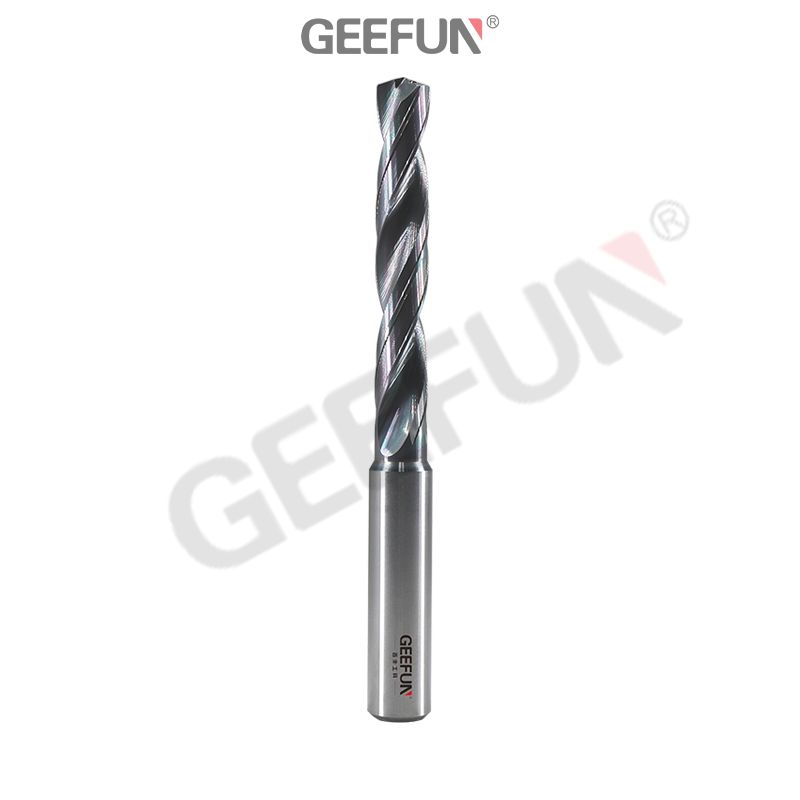

Tungsten Carbide Drill Bits Metal Drills For CNC Lathe Stainless Steel Drilling Hard Metalworking Tool 1-20.0mm(DRCS)

Applicable to Ordinary Processing,mold,Auto parts and aviation and other material Mass production, available stock 1-14mm every 0.1mm
Availability:
Quantity:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

Benefits and Features


Greater versatility

●140° drill tips for a wide range of materials and machining scenarios

● for hardened steels with hardness 32 ≤ HRC ≤ 55

● for stainless steel machining with HRC ≤ 48

● for purple copper machining


Much higher machining efficiency

● hole processing concentricity better, better bore diameter stability

● fixed shank, greatly reduce the cost of drill chuck


More durable with passivation + coating

● dulling of the drill tip and body for greater durability

● anti-bonding, which can reduce the chemical reaction between the tool and the material, avoiding the generation of chip tumors that cause chipping and affect drilling accuracy

● effective in reducing the coefficient of friction between the tool and the material


Two-way cost saving

● fixed-shank drills, which significantly reduce the cost of drilling chucks

● can be resharpened more than 3-5 times and used more than 95% of the original tool



Parameters


NO.

(d1-m7)

(L1)

(LU)

 D

(LS)

(L)

DRCS3D-003

3

20

14

6

36

62

DRCS3D-031

3.1

20

14

6

36

62

DRCS3D-0315

3.15

20

14

6

36

62

DRCS3D-032

3.2

20

14

6

36

62

DRCS3D-0325

3.25

20

14

6

36

62

DRCS3D-033

3.3

20

14

6

36

62

DRCS3D-034

3.4

20

14

6

36

62

DRCS3D-035

3.5

20

14

6

36

62

DRCS3D-036

3.6

20

14

6

36

62

DRCS3D-037

3.7

20

14

6

36

62

DRCS3D-038

3.8

24

17

6

36

66

DRCS3D-0385

3.85

24

17

6

36

66

DRCS3D-039

3.9

24

17

6

36

66

DRCS3D-004

4

24

17

6

36

66

DRCS3D-041

4.1

24

17

6

36

66

DRCS3D-042

4.2

24

17

6

36

66

DRCS3D-043

4.3

24

17

6

36

66

DRCS3D-0435

4.35

24

17

6

36

66

DRCS3D-044

4.4

24

17

6

36

66

DRCS3D-0445

4.45

24

17

6

36

66

DRCS3D-045

4.5

24

17

6

36

66

DRCS3D-046

4.6

24

17

6

36

66

DRCS3D-0465

4.65

24

17

6

36

66

DRCS3D-047

4.7

24

17

6

36

66

DRCS3D-048

4.8

28

20

6

36

66

DRCS3D-049

4.9

28

20

6

36

66

DRCS3D-005

5

28

20

6

36

66

DRCS3D-051

5.1

28

20

6

36

66

DRCS3D-052

5.2

28

20

6

36

66

DRCS3D-0525

5.25

28

20

6

36

66

DRCS3D-053

5.3

28

20

6

36

66

DRCS3D-054

5.4

28

20

6

36

66

DRCS3D-055

5.5

28

20

6

36

66

DRCS3D-0555

5.55

28

20

6

36

66

DRCS3D-056

5.6

28

20

6

36

66

DRCS3D-057

5.7

28

20

6

36

66

DRCS3D-0575

5.75

28

20

6

36

66

DRCS3D-058

5.8

28

20

6

36

66

DRCS3D-059

5.9

28

20

6

36

66

DRCS3D-0595

5.95

28

20

6

36

66

DRCS3D-006

6

28

20

6

36

66

DRCS3D-061

6.1

34

24

8

36

79

DRCS3D-062

6.2

34

24

8

36

79

DRCS3D-063

6.3

34

24

8

36

79

DRCS3D-064

6.4

34

24

8

36

79

DRCS3D-065

6.5

34

24

8

36

79

DRCS3D-066

6.6

34

24

8

36

79

DRCS3D-067

6.7

34

24

8

36

79

DRCS3D-0675

6.75

34

24

8

36

79

DRCS3D-068

6.8

34

24

8

36

79

DRCS3D-069

6.9

34

24

8

36

79

DRCS3D-007

7

34

24

8

36

79

DRCS3D-071

7.1

41

29

8

36

79

DRCS3D-072

7.2

41

29

8

36

79

DRCS3D-073

7.3

41

29

8

36

79

DRCS3D-074

7.4

41

29

8

36

79

DRCS3D-0745

7.45

41

29

8

36

79

DRCS3D-075

7.5

41

29

8

36

79

DRCS3D-076

7.6

41

29

8

36

79

DRCS3D-077

7.7

41

29

8

36

79

DRCS3D-078

7.8

41

29

8

36

79

DRCS3D-079

7.9

41

29

8

36

79

DRCS3D-008

8

41

29

8

36

79

DRCS3D-081

8.1

47

35

10

40

89

DRCS3D-082

8.2

47

35

10

40

89

DRCS3D-083

8.3

47

35

10

40

89

DRCS3D-084

8.4

47

35

10

40

89

DRCS3D-085

8.5

47

35

10

40

89

DRCS3D-086

8.6

47

35

10

40

89

DRCS3D-087

8.7

47

35

10

40

89

DRCS3D-0875

8.75

47

35

10

40

89

DRCS3D-088

8.8

47

35

10

40

89

DRCS3D-089

8.9

47

35

10

40

89

DRCS3D-009

9

47

35

10

40

89

DRCS3D-091

9.1

47

35

10

40

89

DRCS3D-092

9.2

47

35

10

40

89

DRCS3D-093

9.3

47

35

10

40

89

DRCS3D-0935

9.35

47

35

10

40

89

DRCS3D-094

9.4

47

35

10

40

89

DRCS3D-0945

9.45

47

35

10

40

89

DRCS3D-095

9.5

47

35

10

40

89

DRCS3D-096

9.6

47

35

10

40

89

DRCS3D-097

9.7

47

35

10

40

89

DRCS3D-098

9.8

47

35

10

40

89

DRCS3D-099

9.9

47

35

10

40

89

DRCS3D-100

10

47

35

10

40

89

DRCS3D-101

10.1

55

40

12

45

102

DRCS3D-102

10.2

55

40

12

45

102

DRCS3D-1025

10.25

55

40

12

45

102

DRCS3D-103

10.3

55

40

12

45

102

DRCS3D-104

10.4

55

40

12

45

102

DRCS3D-105

10.5

55

40

12

45

102

DRCS3D-106

10.6

55

40

12

45

102

DRCS3D-107

10.7

55

40

12

45

102

DRCS3D-1075

10.75

55

40

12

45

102

DRCS3D-108

10.8

55

40

12

45

102

DRCS3D-109

10.9

55

40

12

45

102

DRCS3D-110

11

55

40

12

45

102

DRCS3D-111

11.1

55

40

12

45

102

DRCS3D-112

11.2

55

40

12

45

102

DRCS3D-1125

11.25

55

40

12

45

102

DRCS3D-113

11.3

55

40

12

45

102

DRCS3D-1135

11.35

55

40

12

45

102

DRCS3D-114

11.4

55

40

12

45

102

DRCS3D-1145

11.45

55

40

12

45

102

DRCS3D-115

11.5

55

40

12

45

102

DRCS3D-116

11.6

55

40

12

45

102

DRCS3D-117

11.7

55

40

12

45

102

DRCS3D-118

11.8

55

40

12

45

102

DRCS3D-119

11.9

55

40

12

45

102

DRCS3D-120

12

55

40

12

45

102

DRCS3D-121

12.1

60

43

14

45

107

DRCS3D-122

12.2

60

43

14

45

107

DRCS3D-1225

12.25

60

43

14

45

107

DRCS3D-123

12.3

60

43

14

45

107

DRCS3D-124

12.4

60

43

14

45

107

DRCS3D-125

12.5

60

43

14

45

107

DRCS3D-126

12.6

60

43

14

45

107

DRCS3D-127

12.7

60

43

14

45

107

DRCS3D-1275

12.75

60

43

14

45

107

DRCS3D-128

12.8

60

43

14

45

107

DRCS3D-129

12.9

60

43

14

45

107

DRCS3D-130

13

60

43

14

45

107

DRCS3D-131

13.1

60

43

14

45

107

DRCS3D-1335

13.35

60

43

14

45

107

DRCS3D-135

13.5

60

43

14

45

107

DRCS3D-1365

13.65

60

43

14

45

107

DRCS3D-138

13.8

60

43

14

45

107

DRCS3D-140

14

60

43

14

45

107

DRCS3D-1425

14.25

65

45

16

48

115

DRCS3D-143

14.3

65

45

16

48

115

DRCS3D-145

14.5

65

45

16

48

115

DRCS3D-1475

14.75

65

45

16

48

115

DRCS3D-148

14.8

65

45

16

48

115

DRCS3D-150

15

65

45

16

48

115

DRCS3D-151

15.1

65

45

16

48

115

DRCS3D-1525

15.25

65

45

16

48

115

DRCS3D-1535

15.35

65

45

16

48

115

DRCS3D-155

15.5

65

45

16

48

115

DRCS3D-158

15.8

65

45

16

48

115

DRCS3D-160

16

65

45

16

48

115

DRCS3D-165

16.5

73

51

18

48

123

DRCS3D-1675

16.75

73

51

18

48

123

DRCS3D-168

16.8

73

51

18

48

123

DRCS3D-170

17

73

51

18

48

123

DRCS3D-175

17.5

73

51

18

48

123

DRCS3D-178

17.8

73

51

18

48

123

DRCS3D-179

17.9

73

51

18

48

123

DRCS3D-180

18

73

51

18

48

123

DRCS3D-183

18.3

79

55

20

50

131

DRCS3D-185

18.5

79

55

20

50

131

DRCS3D-188

18.8

79

55

20

50

131

DRCS3D-190

19

79

55

20

50

131

DRCS3D-195

19.5

79

55

20

50

131

DRCS3D-198

19.8

79

55

20

50

131

DRCS3D-200

20

79

55

20

50

131

DRCS3D-204

20.4

86

60

22

50

141

DRCS3D-205

20.5

86

60

22

50

141

DRCS3D-210

21

86

60

22

50

141

DRCS3D-214

21.4

86

60

22

50

141

DRCS3D-215

21.5

86

60

22

50

141

DRCS3D-220

22

86

60

22

50

141

DRCS3D-2225

22.25

95

65

25

56

153

DRCS3D-225

22.5

95

65

25

56

153

DRCS3D-230

23

95

65

25

56

153

DRCS3D-2325

23.25

95

65

25

56

153

DRCS3D-235

23.5

95

65

25

56

153

DRCS3D-240

24

95

65

25

56

153

DRCS3D-245

24.5

95

65

25

56

153

DRCS3D-250

25

95

65

25

56

153
