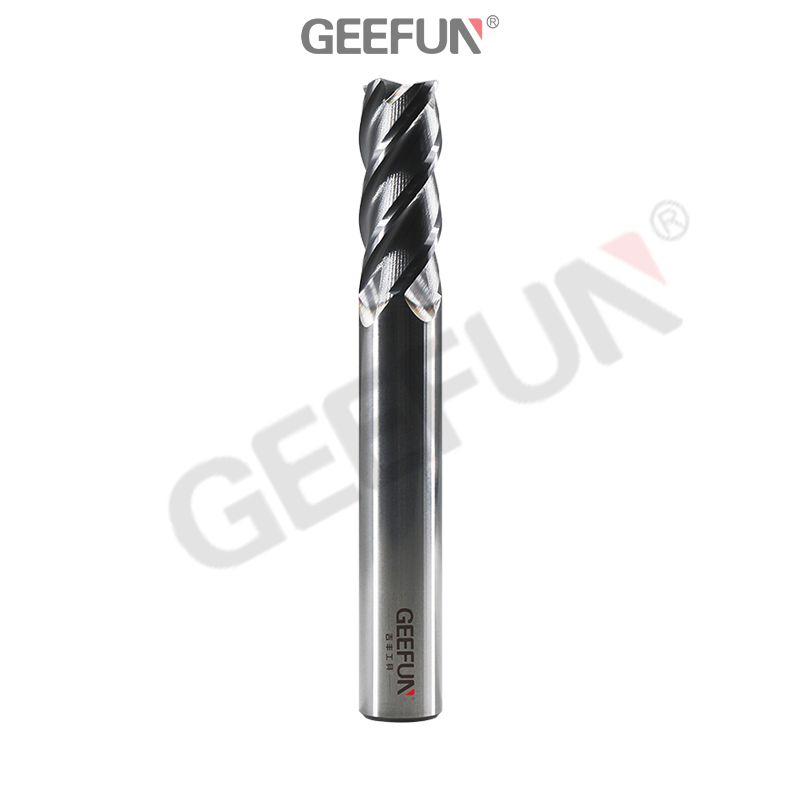

HRC60 - 4 Flute Flat Milling Cutter(GEN)

Availability:
Quantity:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

Benefits and Features


Low vibration

● Unequal division and unequal tooth pitch can reduce vibration

● large core thickness, strong steel and no blade vibration


Anti-blade

● sharp corner protection treatment to avoid chipping


Strong universal performance

● Roughing, finishing and semi-finishing are all integrated, showing good performance in different processes.

● Be suitable for hardened steel with hardness 32≤HRC≤60

● Be suitable for stainless steel with HRC≤48

● Be suitable for purple copper processing

● For general machining requirements of titanium alloy


Nano coating

● Heat and oxidation resistance and wear resistance

● Reduce friction coefficient, reduce cutting heat to avoid chip tumor

end mill



Parameters


NO. d-R L1 DH6 L
GEN-4R053350 Φ3    R0.5 8 Φ3 50
GEN-4R103350 Φ3    R1 8 Φ3 50
GEN-4R053450 Φ3    R0.5 8 Φ4 50
GEN-4R103450 Φ3    R1 8 Φ4 50
GEN-4R054450 Φ4    R0.5 10 Φ4 50
GEN-4R104450 Φ4    R1 10 Φ4 50
GEN-4R055550 Φ5    R0.5 13 Φ5 50
GEN-4R105550 Φ5    R1 13 Φ5 50
GEN-4R055650 Φ5    R0.5 13 Φ6 50
GEN-4R105650 Φ5    R1 13 Φ6 50
GEN-4R056650 Φ6    R0.5 15 Φ6 50
GEN-4R106650 Φ6    R1 15 Φ6 50
GEN-4R058860 Φ8    R0.5 20 Φ8 60
GEN-4R108860 Φ8    R1 20 Φ8 60
GEN-4R053375 Φ3    R0.5 12 Φ3 75
GEN-4R103375 Φ3    R1 12 Φ3 75
GEN-4R054475 Φ4    R0.5 15 Φ4 75
GEN-4R104475 Φ4    R1 15 Φ4 75
GEN-4R055575 Φ5    R0.5 20 Φ5 75
GEN-4R105575 Φ5    R1 20 Φ5 75
GEN-4R056675 Φ6    R0.5 20 Φ6 75
GEN-4R106675 Φ6    R1 20 Φ6 75
GEN-4R058875 Φ8    R0.5 25 Φ8 75
GEN-4R108875 Φ8    R1 25 Φ8 75
GEN-4R051075 Φ10    R0.5 25 Φ10 75
GEN-4R101075 Φ10    R1 25 Φ10 75
GEN-4R051275 Φ12   R0.5 30 Φ12 75
GEN-4R101275 Φ12    R1 30 Φ12 75
GEN-4R051480 Φ14   R0.5 32 Φ14 80
GEN-4R101480 Φ14    R1 32 Φ14 80
GEN-4R053100 Φ3    R0.5 12 Φ3 100
GEN-4R103100 Φ3    R1 12 Φ3 100
GEN-4R054100 Φ4    R0.5 16 Φ4 100
GEN-4R104100 Φ4    R1 16 Φ4 100
GEN-4R055100 Φ5    R0.5 20 Φ5 100
GEN-4R105100 Φ5    R1 20 Φ5 100
GEN-4R056100 Φ6    R0.5 25 Φ6 100
GEN-4R106100 Φ6    R1 25 Φ6 100
GEN-4R058100 Φ8    R0.5 35 Φ8 100
GEN-4R108100 Φ8    R1 35 Φ8 100
GEN-4R0510100 Φ10    R0.5 40 Φ10 100
GEN-4R1010100 Φ10    R1 40 Φ10 100
GEN-4R0512100 Φ12   R0.5 45 Φ12 100
GEN-4R1012100 Φ12    R1 45 Φ12 100
GEN-4R0514100 Φ14   R0.5 45 Φ14 100
GEN-4R1014100 Φ14    R1 45 Φ14 100
GEN-4R0516100 Φ16   R0.5 45 Φ16 100
GEN-4R1016100 Φ16    R1 45 Φ16 100
GEN-4R0518100 Φ18   R0.5 45 Φ18 100
GEN-4R1018100 Φ18    R1 45 Φ18 100
GEN-4R0520100 Φ20   R0.5 45 Φ20 100
GEN-4R1020100 Φ20    R1 45 Φ20 100
GEN-4R0525100 Φ25   R0.5 45 Φ25 100
GEN-4R1025100 Φ25    R1 45 Φ25 100
GEN-4R056150 Φ6    R0.5 25 Φ6 150
GEN-4R106150 Φ6    R1 25 Φ6 150
GEN-4R058150 Φ8    R0.5 35 Φ8 150
GEN-4R108150 Φ8    R1 35 Φ8 150
GEN-4R0510150 Φ10    R0.5 45 Φ10 150
GEN-4R1010150 Φ10    R1 45 Φ10 150
GEN-4R0512150 Φ12   R0.5 45 Φ12 150
GEN-4R1012150 Φ12    R1 45 Φ12 150
GEN-4R0514150 Φ14   R0.5 45 Φ14 150
GEN-4R1014150 Φ14    R1 45 Φ14 150
GEN-4R0516150 Φ16   R0.5 50 Φ16 150
GEN-4R1016150 Φ16    R1 50 Φ16 150
GEN-4R0518150 Φ18   R0.5 50 Φ18 150
GEN-4R1018150 Φ18    R1 50 Φ18 150
GEN-4R0520150 Φ20   R0.5 55 Φ20 150
GEN-4R1020150 Φ20    R1 55 Φ20 150
GEN-4R0525150 Φ25   R0.5 60 Φ25 150
GEN-4R1025150 Φ25    R1 60 Φ25 150
