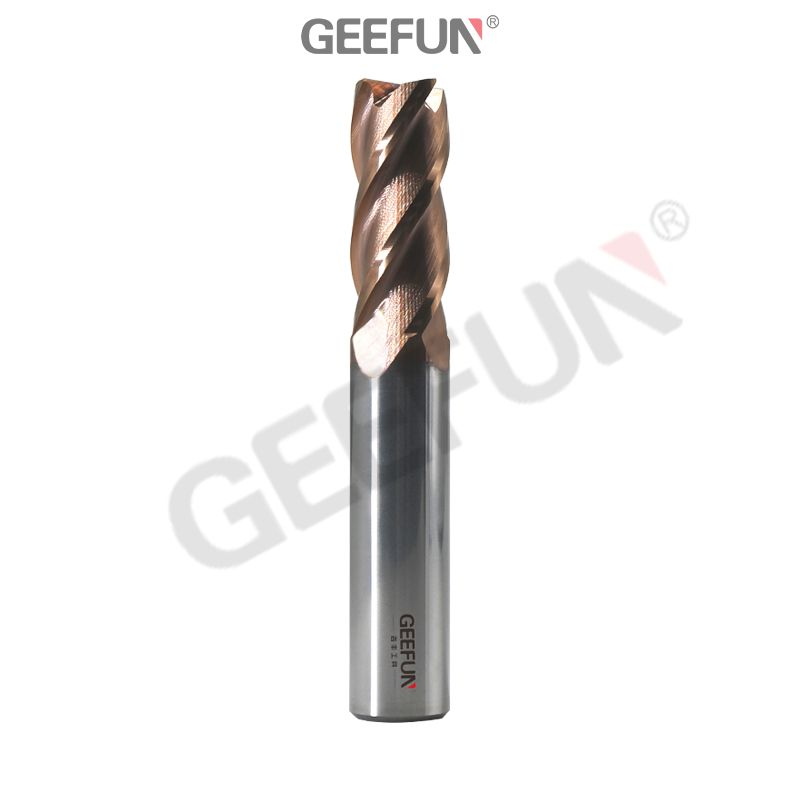

HRC40-4 Flute Corner Radius End Mills(NOR)

Availability:
Quantity:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

Benefits and Features


Low vibration

● Unequal tooth spacing can reduce vibration

●Large core thickness, strong rigidity and vibration-free blade



Anti-chipping

●Sharp corner protection to avoid chipping



Strong general performance

Rough, fine and semi-finishing in one, good performance in different processes

Suitable for carbon steel, alloy steel, pre-hardened steel and tool steel below HRC45


Nano coating

●Heat-resistant, oxidation-resistant, and wear-resistant;

Reduce friction coefficient, reduce cutting heat and avoid built-up edge;

end mill



Parameters

NO.

d-R

L1

DH6

L

NOR-4R053350

Φ3 R0.5

8

Φ3

50

NOR-4R103350

Φ3 R1

8

Φ3

50

NOR-4R053450

Φ3 R0.5

8

Φ4

50

NOR-4R103450

Φ3 R1

8

Φ4

50

NOR-4R054450

Φ4 R0.5

10

Φ4

50

NOR-4R104450

Φ4 R1

10

Φ4

50

NOR-4R055550

Φ5 R0.5

13

Φ5

50

NOR-4R105550

Φ5 R1

13

Φ5

50

NOR-4R055650

Φ5 R0.5

13

Φ6

50

NOR-4R105650

Φ5 R1

13

Φ6

50

NOR-4R056650

Φ6 R0.5

15

Φ6

50

NOR-4R106650

Φ6 R1

15

Φ6

50

NOR-4R058860

Φ8 R0.5

20

Φ8

60

NOR-4R108860

Φ8 R1

20

Φ8

60

NOR-4R053375

Φ3 R0.5

12

Φ3

75

NOR-4R103375

Φ3 R1

12

Φ3

75

NOR-4R054475

Φ4 R0.5

15

Φ4

75

NOR-4R104475

Φ4 R1

15

Φ4

75

NOR-4R055575

Φ5 R0.5

20

Φ5

75

NOR-4R105575

Φ5 R1

20

Φ5

75

NOR-4R056675

Φ6 R0.5

20

Φ6

75

NOR-4R106675

Φ6 R1

20

Φ6

75

NOR-4R058875

Φ8 R0.5

25

Φ8

75

NOR-4R108875

Φ8 R1

25

Φ8

75

NOR-4R051075

Φ 10 R0.5

25

Φ 10

75

NOR-4R101075

Φ 10 R1

25

Φ 10

75

NOR-4R051275

Φ 12 R0.5

30

Φ 12

75

NOR-4R101275

Φ 12 R1

30

Φ 12

75

NOR-4R051480

Φ 14 R0.5

32

Φ 14

80

NOR-4R101480

Φ 14 R1

32

Φ 14

80

NOR-4R053100

Φ3 R0.5

12

Φ3

100

NOR-4R103100

Φ3 R1

12

Φ3

100

NOR-4R054100

Φ4 R0.5

16

Φ4

100

NOR-4R104100

Φ4 R1

16

Φ4

100

NOR-4R055100

Φ5 R0.5

20

Φ5

100

NOR-4R105100

Φ5 R1

20

Φ5

100

NOR-4R056100

Φ6 R0.5

25

Φ6

100

NOR-4R106100

Φ6 R1

25

Φ6

100

NOR-4R058100

Φ8 R0.5

35

Φ8

100

NOR-4R108100

Φ8 R1

35

Φ8

100

NOR-4R0510100

Φ 10 R0.5

40

Φ 10

100

NOR-4R1010100

Φ 10 R1

40

Φ 10

100

NOR-4R0512100

Φ 12 R0.5

45

Φ 12

100

NOR-4R1012100

Φ 12 R1

45

Φ 12

100

NOR-4R0514100

Φ 14 R0.5

45

Φ 14

100

NOR-4R1014100

Φ 14 R1

45

Φ 14

100

NOR-4R0516100

Φ 16 R0.5

45

Φ 16

100

NOR-4R1016100

Φ 16 R1

45

Φ 16

100

NOR-4R0518100

Φ 18 R0.5

45

Φ 18

100

NOR-4R1018100

Φ 18 R1

45

Φ 18

100

NOR-4R0520100

Φ20 R0.5

45

Φ20

100

NOR-4R1020100

Φ20 R1

45

Φ20

100

NOR-4R0525100

Φ25 R0.5

45

Φ25

100

NOR-4R1025100

Φ25 R1

45

Φ25

100

NOR-4R056150

Φ6 R0.5

25

Φ6

150

NOR-4R106150

Φ6 R1

25

Φ6

150

NOR-4R058150

Φ8 R0.5

35

Φ8

150

NOR-4R108150

Φ8 R1

35

Φ8

150

NOR-4R0510150

Φ 10 R0.5

45

Φ 10

150

NOR-4R1010150

Φ 10 R1

45

Φ 10

150

NOR-4R0512150

Φ 12 R0.5

45

Φ 12

150

NOR-4R1012150

Φ 12 R1

45

Φ 12

150

NOR-4R0514150

Φ 14 R0.5

45

Φ 14

150

NOR-4R1014150

Φ 14 R1

45

Φ 14

150

NOR-4R0516150

Φ 16 R0.5

50

Φ 16

150

NOR-4R1016150

Φ 16 R1

50

Φ 16

150

NOR-4R0518150

Φ 18 R0.5

50

Φ 18

150

NOR-4R1018150

Φ 18 R1

50

Φ 18

150

NOR-4R0520150

Φ20 R0.5

55

Φ20

150

NOR-4R1020150

Φ20 R1

55

Φ20

150

NOR-4R0525150

Φ25 R0.5

60

Φ25

150

NOR-4R1025150

Φ25 R1

60

Φ25

150
