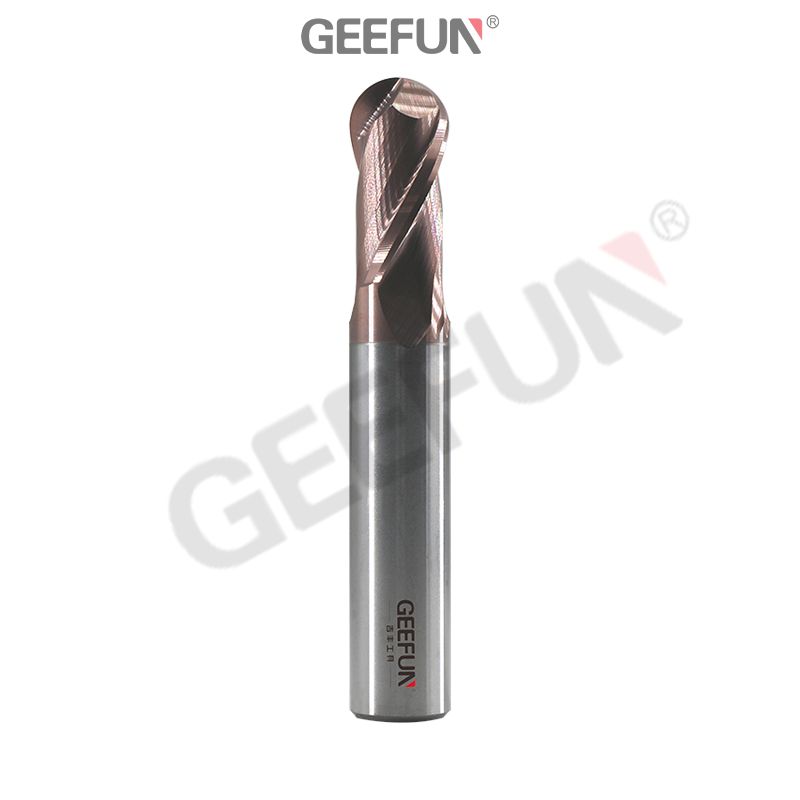

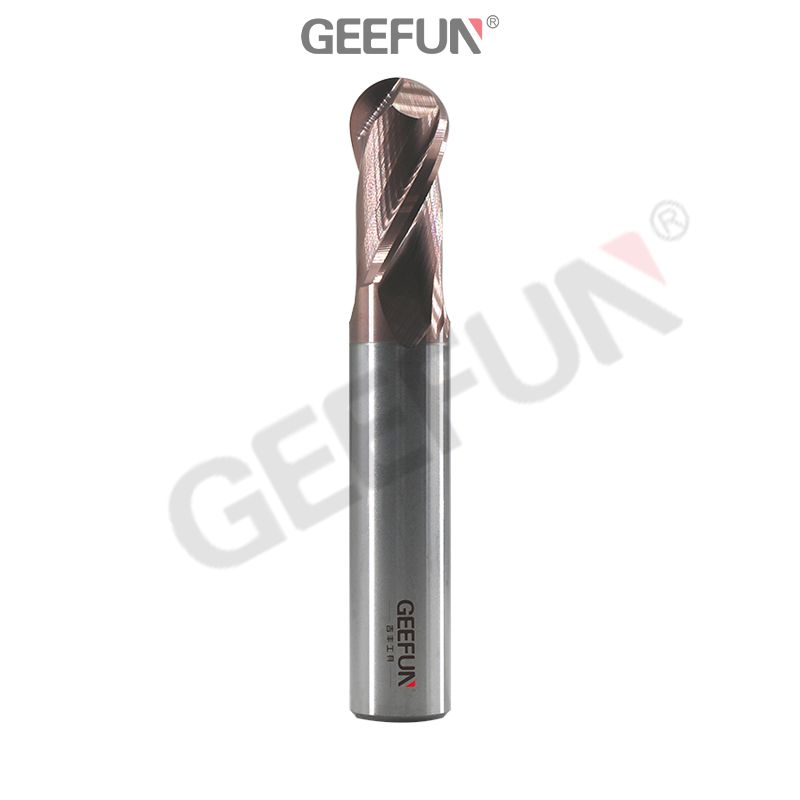

HRC40-2 Flute Ball Nose End Mills(NOR)

Availability:
Quantity:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

Benefits and Features


Low vibration

● Unequal tooth spacing can reduce vibration

●Large core thickness, strong rigidity and vibration-free blade



Anti-chipping

●Sharp corner protection to avoid chipping



Strong general performance

Rough, fine and semi-finishing in one, good performance in different processes

Suitable for carbon steel, alloy steel, pre-hardened steel and tool steel below HRC45


Nano coating

●Heat-resistant, oxidation-resistant, and wear-resistant;

Reduce friction coefficient, reduce cutting heat and avoid built-up edge;

end mill



Parameters


NO.

R

L1

DH6

L

NOR-2B05450

R0.5

2

Φ4

50

NOR-2B075450

R0.75

3

Φ4

50

NOR-2B10450

R1

4

Φ4

50

NOR-2B125450

R1.25

5

Φ4

50

NOR-2B15350

R1.5

6

Φ3

50

NOR-2B15450

R1.5

6

Φ4

50

NOR-2B175450

R1.75

7

Φ4

50

NOR-2B20450

R2

8

Φ4

50

NOR-2B25550

R2.5

10

Φ5

50

NOR-2B25650

R2.5

10

Φ6

50

NOR-2B30650

R3

12

Φ6

50

NOR-2B40860

R4

16

Φ8

60

NOR-2B15375

R1.5

6

Φ3

75

NOR-2B20475

R2

8

Φ4

75

NOR-2B25575

R2.5

10

Φ5

75

NOR-2B30675

R3

12

Φ6

75

NOR-2B40875

R4

16

Φ8

75

NOR-2B501075

R5

20

Φ 10

75

NOR-2B601275

R6

24

Φ 12

75

NOR-2B701480

R7

28

Φ 14

80

NOR-2B153100

R1.5

6

Φ3

100

NOR-2B204100

R2

8

Φ4

100

NOR-2B255100

R2.5

10

Φ5

100

NOR-2B306100

R3

12

Φ6

100

NOR-2B408100

R4

16

Φ8

100

NOR-2B5010100

R5

20

Φ 10

100

NOR-2B6012100

R6

24

Φ 12

100

NOR-2B7014100

R7

28

Φ 14

100

NOR-2B8016100

R8

32

Φ 16

100

NOR-2B9018100

R9

36

Φ 18

100

NOR-2B1020100

R10

40

Φ20

100

NOR-2B12525100

R12.5

50

Φ25

100

NOR-2B306150

R3

12

Φ6

150

NOR-2B408150

R4

16

Φ8

150

NOR-2B5010150

R5

20

Φ 10

150

NOR-2B6012150

R6

24

Φ 12

150

NOR-2B7014150

R7

28

Φ 14

150

NOR-2B8016150

R8

32

Φ 16

150

NOR-2B9018150

R9

36

Φ 18

150

NOR-2B1020150

R10

40

Φ20

150

NOR-2B12525150

R12.5

50

Φ25

150
